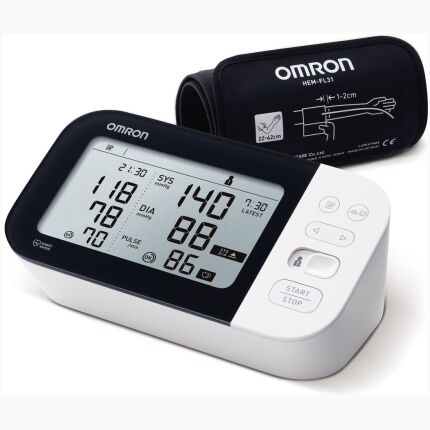

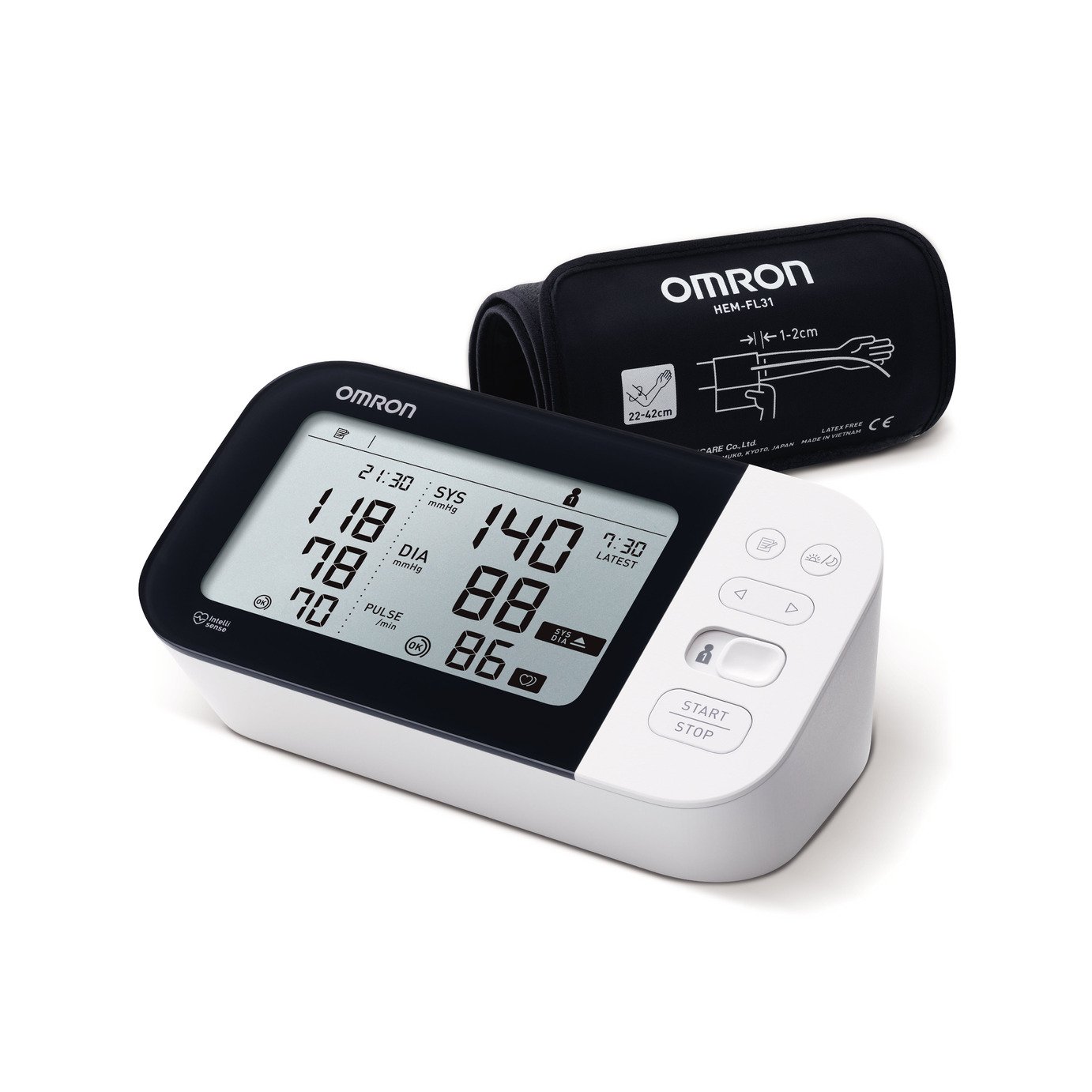

Omron Blood Pressure Monitor M7 Intelli It
Omron Blood Pressure Monitor M7 Intelli It: This is a clinically approved blood pressure monitor. It has equipped with a Bluetooth connection. Which is detects the possibility of Atrial Fibrillation. It highlights potential atrial fibrillation and an often-undetected condition that can lead to an increased risk of stroke and embolism.
You can connect to the Omron application that is allows to send your result in your smartphone via Bluetooth and to take pressure reading.
The OMRON M7 Intelli IT model is equipped with an indicator that informs the user of the correct positioning of the cuff. Ensures accurate blood pressure measurements in any position it is applied around the arm.
OMRON M7 Intelli IT takes three consecutive blood pressure measurements at 30 second intervals, then displays the average to give a more accurate blood pressure indication.
Omron Blood Pressure Monitor M7 Intelli It Features
- Intelli Wrap Cuff
- Fibrillation indicator function
- Clinically Validated in general populations, and for people who are pregnant or have diabetes.
- 2 Users, 100 memories, and Guest Mode
- 3x consecutive measurement functionality
- The Cuff Wrap Guide
Packaging content
- In this packing 1 Monitor
- The Arm Cuff (HEM-FL31-E)
- it has 4 “AA” batteries.
- Storage Case
- There is one instruction manual 1 & 2
- Setup instructions
Technical data
- Measurement Method: Oscillometric method
- There is LCD digital display
- Cuff Pressure Range: 0 to 299 mmHg
- Pulse Measurement Range: 40 – 180 beats/min
- Blood pressure measurement range: SYS 60 to 260 mmHg, DIA: 40 to 215 mmHg.
- Accuracy: Pressure +- 3mmHg, Pulse +-5% of display reading
- Inflation: Automatic by electric pump
- Deflation: Automatic pressure release valve
- Transmission method Wireless communication: Bluetooth® Low Energy Frequency range: 2.4 GHz (2400 – 2483.5 MHz) / Modulation: GFSK Effective radiated power: < 20 dBm
- Operating mode: Continuous operation
- IP classification: Monitor: IP 20/ Optional AC adapter: IP21
- Rating: DC6 V 4.0 W
- Applied part: Type BF (arm cuff)
- Power Source: 4 “AA” batteries 1.5 V or optional AC adapter (input AC 100-240 V 50-60 Hz 0.12 -0.065 A)
- Battery life: Approximately 1000 measurements (using new alkaline batteries) The number of times may decrease when using Afib mode because one Afib indication consists of 3 regular measurements.
- Durable period (Service life): Monitor: 5 years / Cuff: 5 years / Optional AC adapter: 5 years
- Operating conditions: +10 to +40 °C / 15 to 90% RH (non- condensing)/ 800 to 1060 hPA
- Storage / Transport conditions: -20 to +60 °C / 10 to 90% RH (non-condensing)
- Protection against electric shock: Internally powered ME equipment (when using only batteries) Class II ME equipment (optional AC adapter)
- Cuff circumference applicable to the monitor: 220 to 420 mm
- Memory: Stores up to 100 readings per user
- Warranty: 3 years
- Weight Monitor: approximately 460 g (not including batteries) / Arm cuff: approximately 163 g
- Dimensions (approximate value) Monitor: 191 mm (W)× 85 mm (H)× 120 mm (L), Arm cuff: 145 mm × 532 mm (air tube: 750 mm)
