Name: Feellife AirBar Sport 1 Portable Oxygen Concentrator
SKU: 255023
Availability: InStock

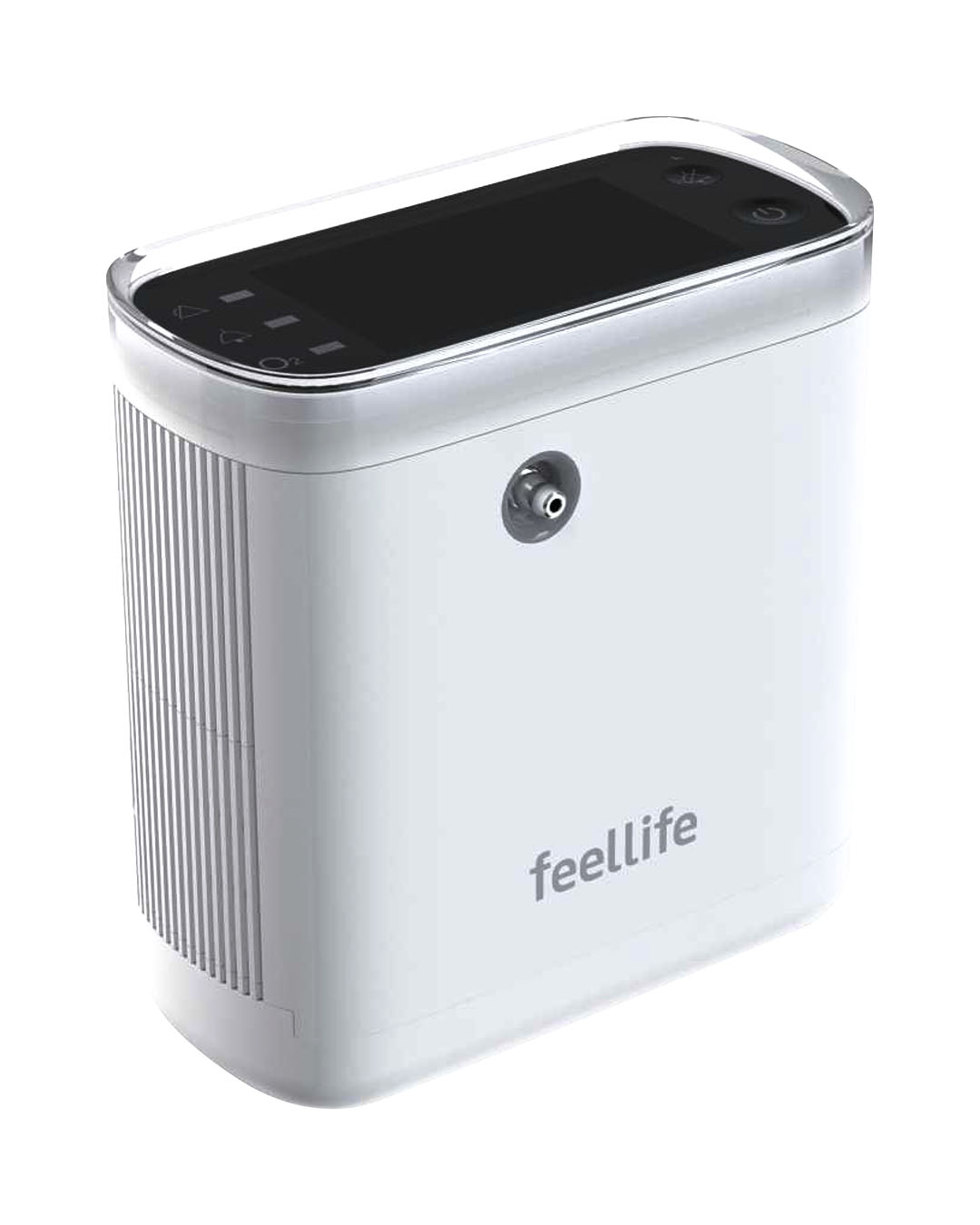

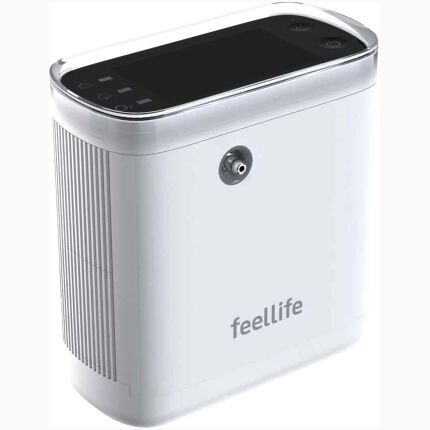

Feellife AirBar Sport 1 Portable Oxygen Concentrator

750.00 KWD

Using air as raw material and molecular sieve pressure swing adsorption process to product oxygen rich air, with an oxygen concentrator range of (90%~96% V/V), oxygen therapy or relief of discomfort caused by hypoxia.

In stock

Feellife AirBar Sport 1 Portable Oxygen Concentrator

Feellife AirBar Sport 1 Portable Oxygen Concentrator: Using air as raw material and molecular sieve pressure swing adsorption process to product oxygen rich air, with an oxygen concentrator range of (90%~96% V/V), oxygen therapy or relief of discomfort caused by hypoxia.

Working principle of the product:

Oxygen concentrator refers to equipment that utilizes the principle of molecular sieve pressure swing adsorption to increase oxygen concentration by adsorbing nitrogen and other gas components.

When the equipment is in operation. compressed air is injected into a closed adsorption tower containing molecular sieve, causing the pressure inside the adsorption tower to increase. The molecular sieves in the tower absorb a large amount of nitrogen in the compressed air with the increase of environmental pressure, While the oxygen in the compressed air still exists in gas form and is collected through certain pipelines. This process is commonly referred to as the “absorption” process. When the molecular sieve in the container adsorbs nitrogen to reach the critical state of adsorption saturation, the adsorption tower is purged and depressurized. As the environmental pressure decreases, the ability of the molecular sieve to adsorb nitrogen decreases, and nitrogen is released back into the gas phase from inside the molecular sieve and discharged as waste gas.

This product uses a respiratory sensor to detect the user’s respiratory rate in real-time and automatically output oxygen while inhaling.

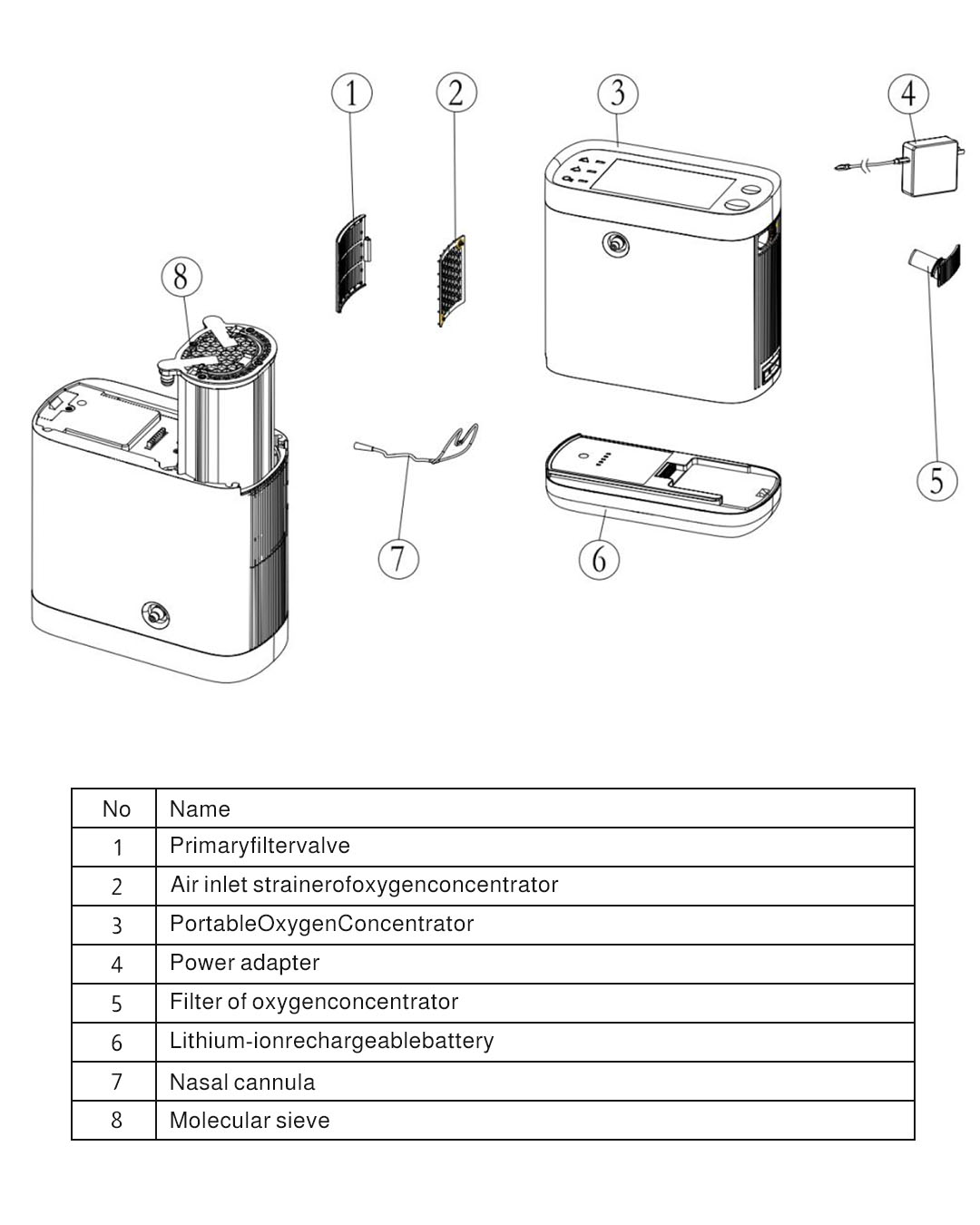

Product structure composition:

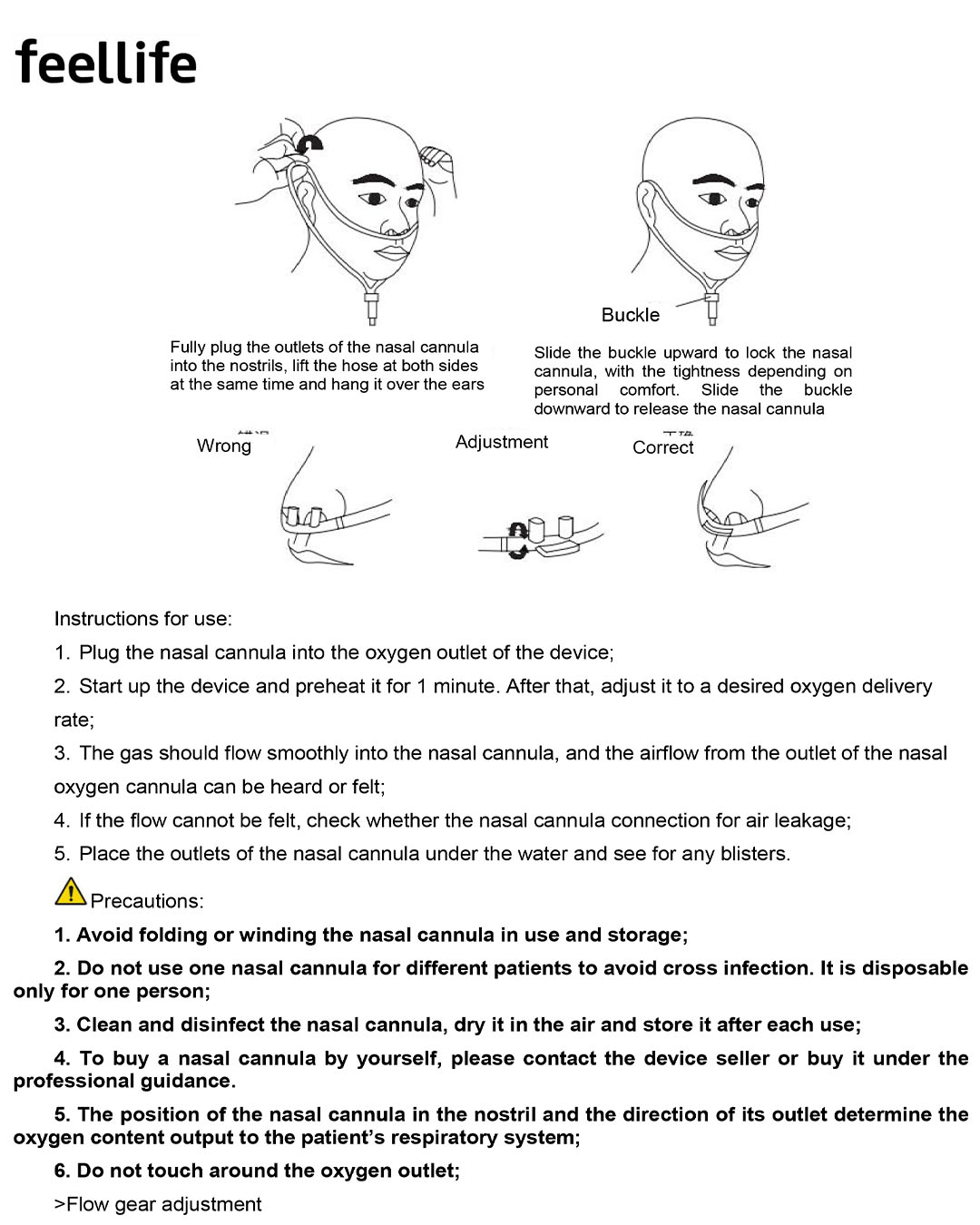

Composed of an oxygen concentrator host, battery, power adapter, on-board DC power adapter, nasal oxygen tube, and portable bag.

Product Technical Parameter

Model

AirBar Sport 1

Dimension

Without battery: 176 x 87 x 160mm,

Including 8-cell battery: 176 x 87 x 186mm

Weight

Including battery: approx. 2.1kg,

without battery approx. 1.5kg

Battery Duration

6-Speed can be used for 2 hours, 1-speed can be used for 5 hours.

Depending on the actual gear used, the duration varies.

Battery Charging Time

3.5 hours,

cycle times: 800 times, initial capacity > 70%.

AC Power Supply

Internal power supply (battery): Rated operating voltage: DC14.4V

When using AC power adapter: Required input voltage: AC100V-240V, 50/60Hz: Output: DC20V 5A.

When using car charger: Input voltage: DC12V-24V, Output: DC20V 5A.

Warm Up Time

1 minute, oxygen concentration > 90%.

Sound Level (dBA)

< 60 dB

Oxygen Purity

90%~96%

Max Limited Pressure

< 180kPa

Warranty Period

Host: 2years, Battery: 1year.

Flow Rate (mL/min)

Gear Setting	1	2	3	4	5	6
Berating Rate	20					60 constant frequency
Pulse Volume (mL)	10	20	30	35	40	13.33
Oxygen Delivery(mL/min)	200	400	600	700	800	800
Gear Setting	Allowable Tolerance +15%
