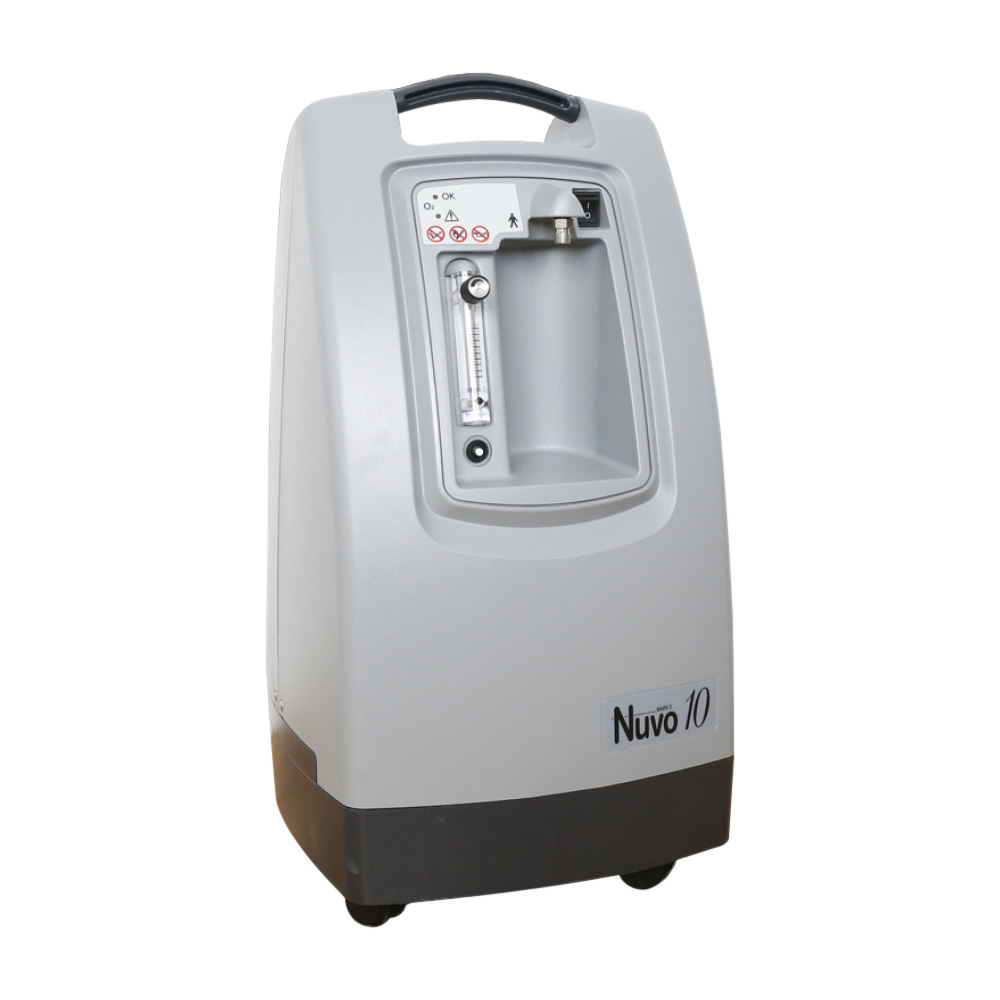

Oxygen Concentrator Nuvo

Oxygen Concentrator Nuvo

What is an Oxygen Concentrator and who requires one?

1. An Oxygen Concentrator is a type of medical device used for delivering oxygen to individuals with breathing-related disorders.
2. It is equipped with special filters and sieve beds which help remove Nitrogen from the air, so as to ensure delivery of completely purified oxygen to the user.
3. Individuals whose oxygen concentration in their blood is lower than normal may require an Oxygen Concentrator.
4. A doctor must prescribe the required flow rate/ oxygen level after they have completed a thorough medical evaluation.

Features:

• Dimension (L x W x H): 39.4 cm x 39.6 cm x 70.6 cm
• Weight: 24kg
• Electrical Requirements: 230V – 50Hz
• Flow Delivery Rate: 2 to 10 LPM
• Oxygen Concentration:
  • At 2 LPM > 90
  •  At 10 LPM 87% to 95.5%
• Sound Level: < 58 dBA
• Power Consumption: 600 Watts Average
• Operating System: Timed Cycle/ Rapid Pressure Swing
• Safety Alarms & Features:
• Power Failure
• Process Failure
• High Pressure/ Low Pressure
• Low Oxygen Concentration
• Current Overload or line surge shutdown
• Thermal Switch
• 20 psig Pressure Relief Valve
• Low Battery Test
• Filters: Inlet Filter – External Filter
• Operating Environment: Ambient Temperature 10digree C to 40 degree C, Humidity: 15% to 95%, non-condensing.
• Storage Range: Temperature: -20Digree C to 60 degree C, Humidity: 15% to 95% non-condensing.
