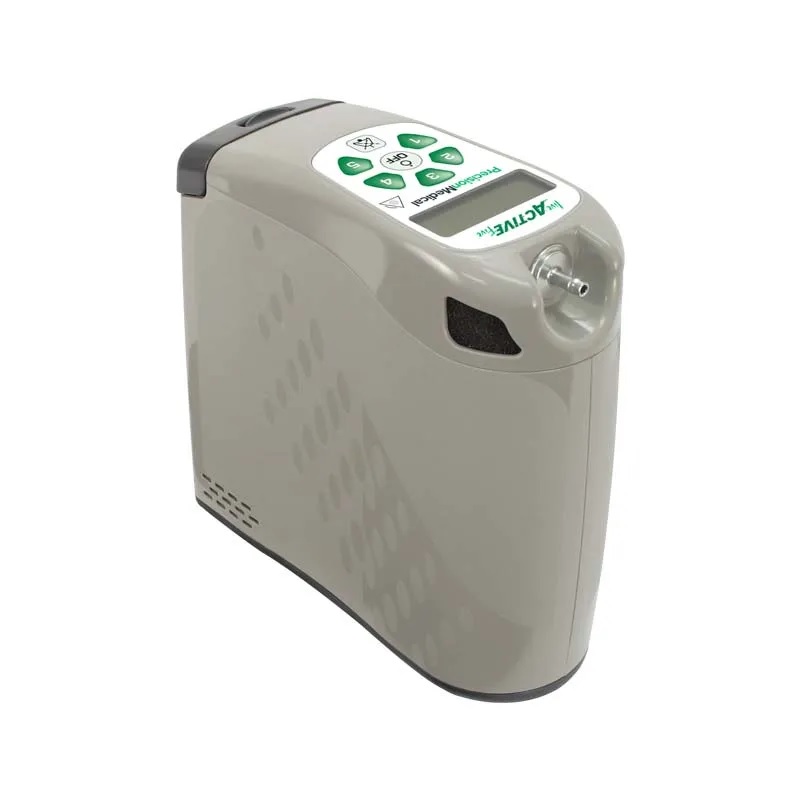

Live Active Five Portable Oxygen Concentrator (POC)
The Live Active Five POC uses a molecular sieve and vacuum pressure swing adsorption methodology to produce the oxygen gas output. Ambient air enters the device, is filtered and then compressed. This compressed air is then directed into nitrogen adsorbing sieve beds. Concentrated oxygen exits the opposite end of the sieve bed and is directed into an oxygen reservoir from which it is delivered to the user.
The oxygen purity level of the output gas ranges from 87% to 95.5%. The oxygen is delivered to the user through the use of a nasal cannula. A pulsed delivery method is used. The device detects the start of user inhalation and delivers a measured pulse of oxygen. No further oxygen is delivered until the next user’s inhalation is detected. The volume of oxygen delivered each minute is a fixed amount based on the selected pulse flow setting. The volume of each oxygen pulse will vary with the user’s breath rate such that the fixed minute volume is maintained.
Intended Use and Indications
The Precision Medical, Inc. Live Active Five (POC) device is intended to provide supplemental oxygen to people requiring oxygen therapy. The device can be used at home, in an institution, vehicle, or for transportable use.
User Profile
- The Live Active Five POC is to be used by a trained patient and/or caregiver in or outside the home who requires prescribed supplemental oxygen.
- The user should have a visual acuity of 0 on the log Minimum Angle of Resolution (log MAR) scale or 6/6 (20/20), corrected if necessary.
- The user should not have a hearing impairment that would prevent them from hearing the device alerts.
- The user must be able to read and understand the supplied user manual in the language it is written in.
- The patient population is for adult use only. The patient should not be a child, newborn, or infant.
- The patient must be able to wear an adult-sized cannula to ensure proper patient usage and oxygen delivery.
Contraindications
- This device is not intended to be used while sleeping.
- This device is not to be used for support or to sustain life.
- This device is intended to provide supplemental oxygen only. An alternate source of oxygen should always be available.
- This device is not intended for children, newborns, or infant use.
- This device is not appropriate for any user who would experience adverse health consequences as a result of a temporary interruption in oxygen therapy.
- This device should only be used when prescribed by a physician. The use of non-prescribed oxygen therapy can be hazardous.
- Users who are unable to communicate discomfort while using this device may require additional monitoring.
- Users with hearing and/or vision impairments may need assistance while using this device.
- Users who breathe from their mouths or through an oxygen mask should not use this device.
Less Anxiety
Each lithium-ion battery packs more than 6 hours of runtime! The simple, top-loading design of the Live Active Five allows you to quickly change the battery while the device is still in the carry bag. We purposely designed it so you can conveniently extend your battery life as needed without having to carry the extra weight of a double battery.
Carry Bag
The Live Active Five comes with a custom-designed carry bag that allows you to comfortably wear the device on either side of the body or as a cross-body. This dual-curve design keeps the nasal cannula in place, and the bag’s smart strap prevents it from accidentally unhooking from the oxygen outlet. No matter how you choose to wear the Live Active Five, the custom carry bag always keeps the unit’s screen and cannula front-facing. The carry bag strap has a soft padded cushion that makes the bag feel lighter while carrying and helps ease back and shoulder pain.
The difference is
This portable oxygen concentrator has a built-in Concentrator Performance Information (CPI) Technology that helps to easily identify unit problems that may occur in its lifetime. This technology, powered by Bluetooth, tracks unit activity, which can then be analyzed by Precision Medical for direct support from the manufacturer.
